Lamor Brush and disc adapters
Brush and disc adapters

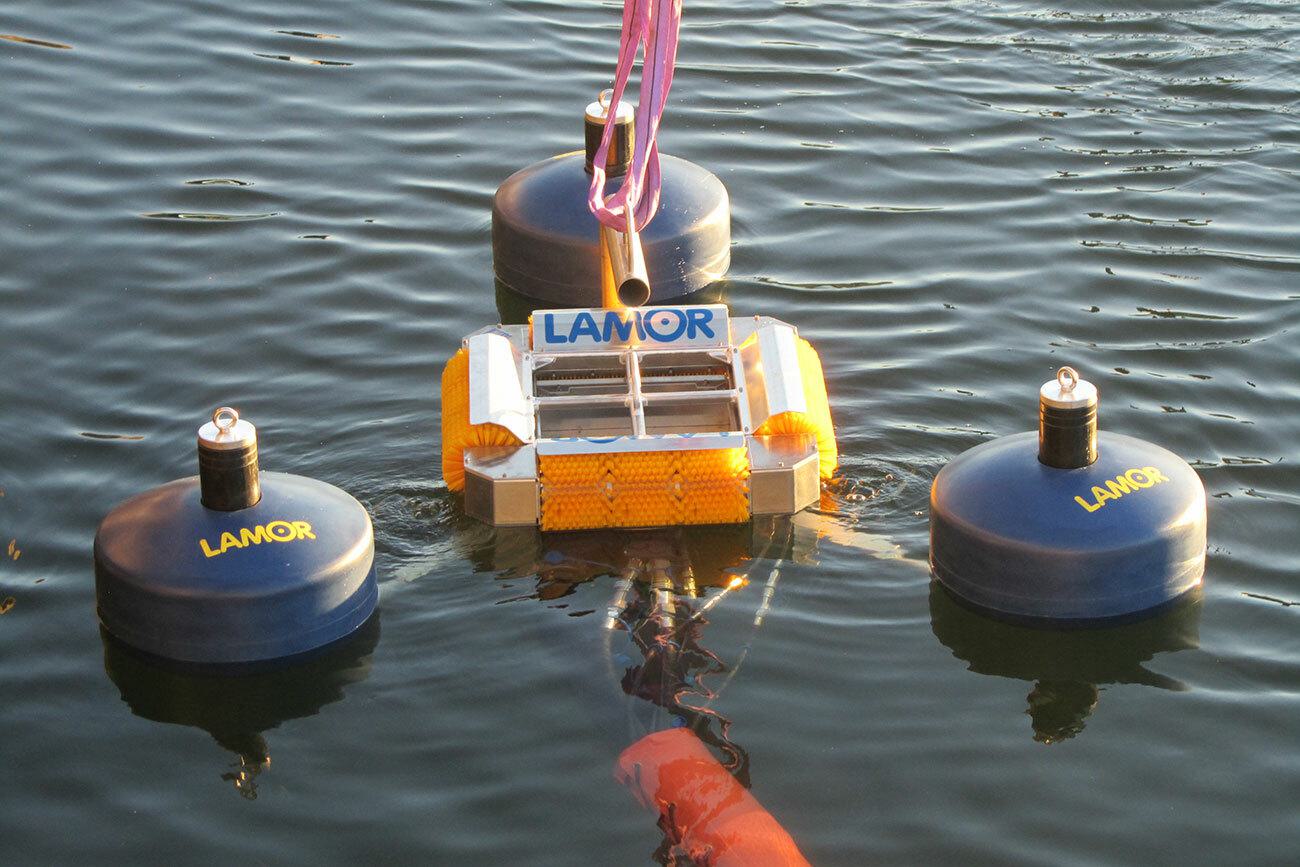

The Lamor Brush Adapters (LBA) are brush-wheel oil recovery modules designed to fit quickly and easily onto the hopper of the Lamor Weir Skimmers. The purpose of the devices is to improve the overall recovery efficiency (reduce free water recovered with oil) and to improve the performance in very high viscosity oils.
“The LBA adapters may a huge difference to weir skimmers during real oil spills”
How it works
The products have three to four banks of brush wheels, which rotate downward into the oil layer creating a strong inflow. The brush banks are mounted within a sturdy aluminum frame with a center-lifting eye. The brushes are driven by two hydraulic motors, which are powered by a single hydraulic circuit. The brush adapter can easily be installed on the Lamor weir skimmer hopper.
Features
- Improves the recovery efficiency of weir skimmers
- Advanced brush technology
- Easy to install
Scenarios of use
- Inland
- Rivers
- Harbors
- Shoreline
- Offshore
- Arctic
Related equipment
| Technical Specifications | LBA 500 | LBA 800 | LBA 1300 |
|---|---|---|---|
| Item ID | 102721 | 202485 | 219840 |
| Length | 801 mm / 32 in | 970 mm / 38 in | 2050 mm / 80 in |
| Width | 798 mm / 31 in | 970 mm / 38 in | 1800 mm / 70 in |
| Weight | 46 kg / 102 lbs | 60 kg / 132 lbs | 220kg / 485 lbs |
| Certified capacity | 61.1 m³/h / 269 gpm | 81.5 m³/h / 359 gpm | 3 x 74 m3/h |
| Free water collected | <5 % | <5 % | <5% |
| Hydraulic flow | 3l/min / 0.8 gpm | 8l/min / 2 gpm | 20l/min / 5 gpm |
| Hydraulic pressure | 140 bar / 2030 psi | 170 bar / 2466 psi | 170-220 bar / 2465 - 3190 psi |
| Power requirement | 0.7 kW / 0.9 hp | 2.2 kW / 2.9 hp | 6.5 kW / 5.7 hp |
